Product Details:
|
| Model NO.: | GE-S650 | Etching Type: | Double Spray |
|---|---|---|---|
| Precision: | Precision | Condition: | New |
| Machine Material: | PP Plate | Acid Solution: | Ferric Chloride Or Hno3 |
| Application: | Stainless Steel, Aluminum, Titanium, Copper, Brass | Working Width: | 650mm |
| Working Height: | 850mm | Etching System: | Double Side Spray |
| Heater: | Titanium,3kw | Cooling System: | PE Pipe Or Titanium Pipe |
| Transport Package: | Wooden Case | Specification: | CE |
| Trademark: | GOLDEN EAGLE | Origin: | China |
| HS Code: | 8486209000 | Supply Ability: | 50sets/ Month |
| After-sales Service: | Main Parts And Spare Accessory For Dest | Warranty: | 1 Year. |
| Type: | Photochemical Etching Machine | Object: | Metal |
| Usage: | Corrosion & Hollowed-out | Certification: | CE |

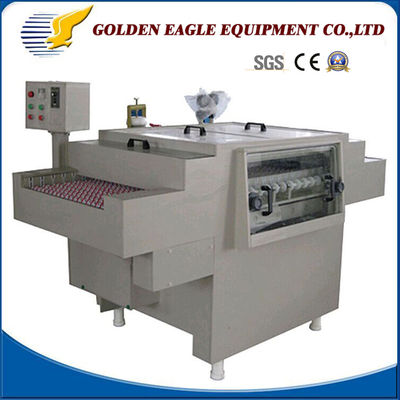

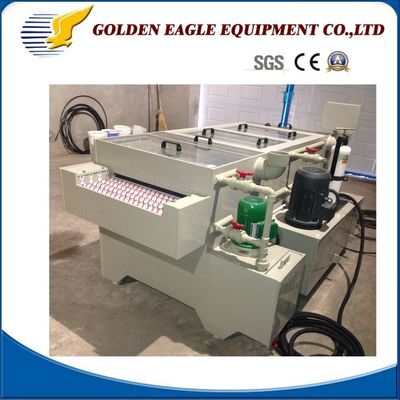

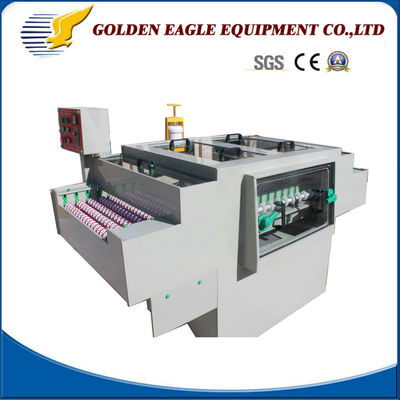

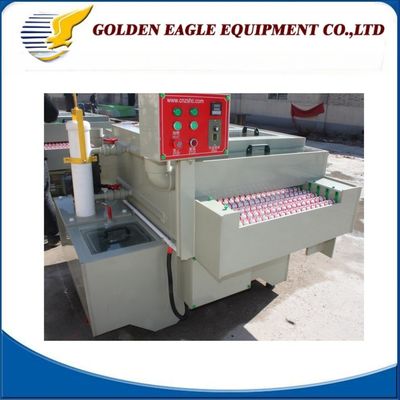

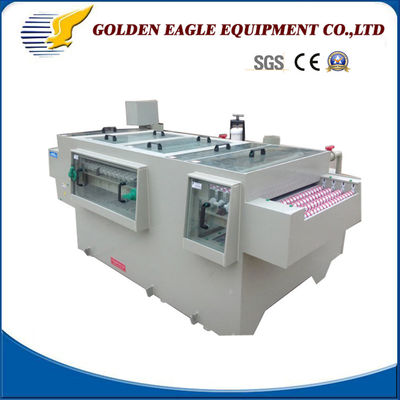

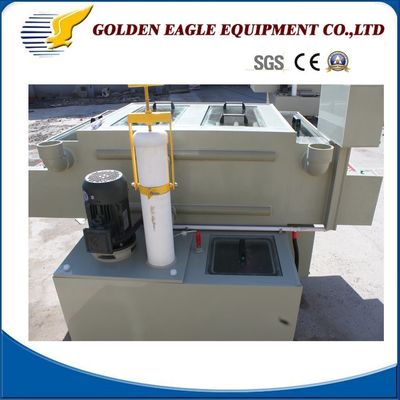

Nameplate Etching Machine / Dual Jet Etching Machine
Model :GE-S650
Power :5.5KW/220V/50HZ
Working width :650mm
Etching area:650*1000mm
Etched type:Double Spray
Working Temperature:37~45°C
Heat System:Titanium,3KW
Cool System:PE cooling Pipe,25 meter
Vertical Pump:2.2KW/220V/50HZ
Spray pipe:14pcs ,for up and down
Nozzles:Fan-shaped,91nozzles
Tank volume:200Liters
Machine Size:2150*1350*1250mm
Weight:About 450kgs
1. This metal etching machine is acid photo chemical etching equipment, etchant solution is ferric chloride.
2. This machine can make nameplates,signs,tags,logos,medals,tags,stencils gobos,metal crafts etc.
3. Materials can be Steel, Stainless steel, Copper, Brass, Aluminum,titanium and so on.
4. Machine is double side spraying,we can control separately for up nozzles or bottom nozzles.
5. This machine can also do developer and stripper,only put different chemical in tank.
6. Machine material is German PP plate,can resist high temperature 100 degrees.
