Product Details:
|
| Model NO.: | TB5060 | Automatic Grade: | Semi-Automatic |
|---|---|---|---|
| Application: | Copper Block,Zinc Block,Magnesium Block | Usage: | Label Printer, Paper Printer |
| Hot Stamping Pressure Factor: | Hot Stamping Temperature | Decisive Factor: | Bronzing Speed |
| Etching Size: | 500*600mm | Tank Volume: | 60L |
| Etching Temperature: | 23 To 30 Centigrade | Power: | 5.5kw/220V |
| Model: | Tb5060 | Heat System: | Titanium,1kw |
| Cool System: | Air Conditioner,5p | Machine Body Material: | 15mm PP Plate |
| Machine Size: | 1650*1350*1450mm | Transport Package: | Wooden Package |
| Specification: | CE | Trademark: | Golden Eagle |
| Origin: | Beijing, China (Mainland) | HS Code: | 84862090 |
| Supply Ability: | 35sets/Month | After-sales Service: | 1year. After 1year,Once Some Components Are Broke |
| Warranty: | 1year. After 1year,Once Some Components Are Broke | Classification: | Intermittent Stamping Machine |
| Plate Type: | Screen Printer | Color & Page: | Single Color |
| Suitable Material: | Metal |

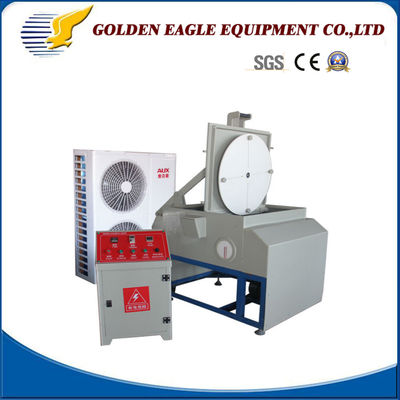

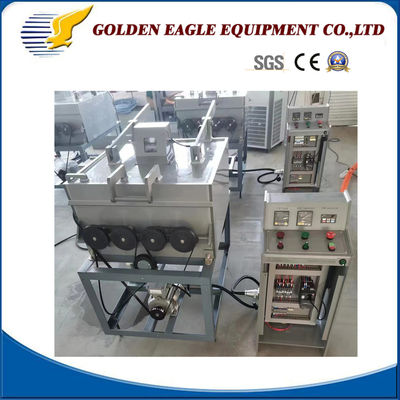

Hot Stamping Dies Making Machines
| TB3040 Hot Stamping Dies Etching Machine | |
| Power | 4.5KW/220V |
| Working Size | 300*400mm |
| Working Temperature | About 22~30ºC |
| Heat System | Titanium,3KW |
| Cool System | KELON Air Conditioner,2P |
| Cooling pipe | Diameter: 19mm |
| Titanium,about 20meters | |
| Machine body material | 15mm PP plate |
| Spindle | Titanium (4PCS) |

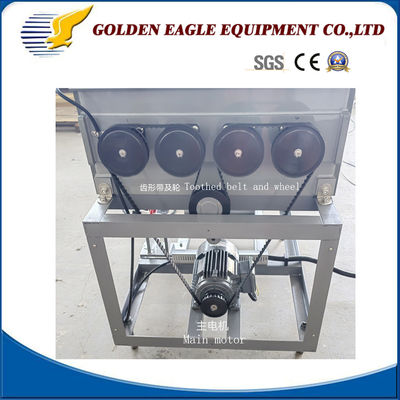

| Electric Motor | 1.5KW |
| Tank Volume | 40 Liters |
| Machine Size | 1150*1250*1300mm |
| Weight | About 300kgs |
Features:

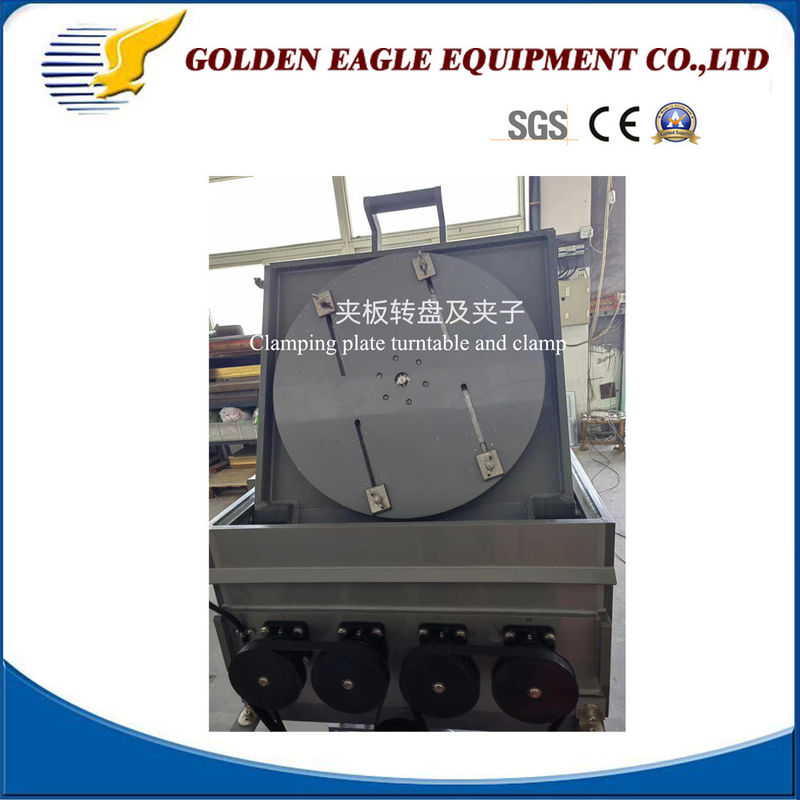

1. This etching machine is rotating and angle-swing structure,can get good slope of etched edge.
2. This etching machine can make magnesium,zinc or copper block for hot foil stamping dies.
3. Different material need different chemical,nitric acid for zinc or magnesium,ferric chloride for copper.
4. Our factory can also supply raw metal plate and chemical for customer.
5. Our factory supply technical training for making copper,zinc or magnesium.
6. Customer can choose any size as Max metal plate size,as follows,
Working size:300*400mm'400*500mm;500*600mm;700*900mm
Note: Customer can order any size as Max metal plate size.
1.Q:Are you trading company or a factory ?
A: We are manufactory and We have import and export License .
2.Q:Where is your factory ?How Can I visit there?
A: Our factory is located in Beijing, the capital of China,Warmly welcome to visit us.
3.Q:How can I get some samples ?
A: we are honores to offer you samples,please contact us anytime !
4.Q: How does your factory do regarding quality control ?
A: Quality is priority .Golden Eagle people always attach great importance to quality controlling from A to Z.
5.Q:Why us ?
A: 1. 20 years machine manufacture experiences !
2. More than 10 years good credit supplier on Made-in-China
3. satisfaction or we'll refund or rerun-your choice
4. Etching technology can be provided for free to our customer by our well-trained and professional engineers and staffs.
Contact Person: Mrs. liu
Tel: 15010608128
