Product Details:
|
| Model NO.: | GE-SK48 | Etching Type: | Double Spray |
|---|---|---|---|
| Precision: | Precision | Condition: | New |
| Working Width: | 1550mm/1300mm | Etching System: | Spraying And Oscillate System |
| Metal Plate Thickness: | 0.2~5.5mm | Conveyor Speed: | 0~6.5m/Min |

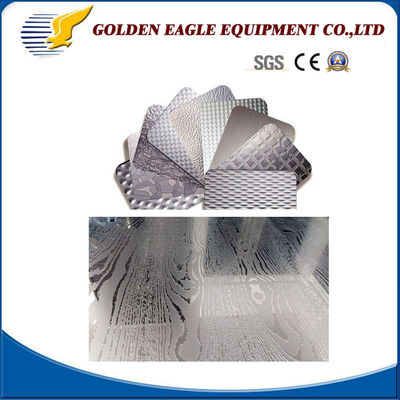

| Heater/Cooler: | Titanium Pipe | Application: | Decorative Plate, Elevator Plate Etc. |
| Engraving Machine Type: | Acid Chemical Etching | Etching Machine Type: | Photochemical Etching Machine |
| Control: | Automatic | Current: | AC |
| Transport Package: | Standard Export Wooden Case | Specification: | CE |
| Trademark: | GOLDEN EAGLE | Origin: | China |
| HS Code: | 84862090 | Supply Ability: | 20sets/Month |
| After-sales Service: | After 1year,Once Some Components Are Broke | Warranty: | After 1year,Once Some Components Are Broke |
| Type: | Electrical Etching Machine | Object: | Metal |
| Usage: | Corrosion & Hollowed-out | Certification: | CE |

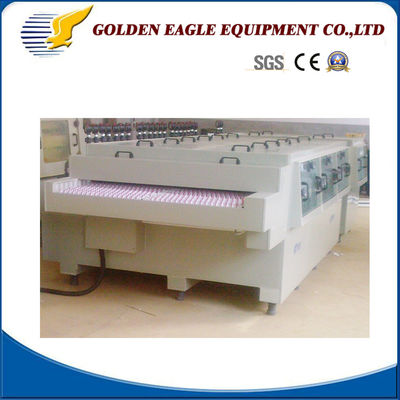

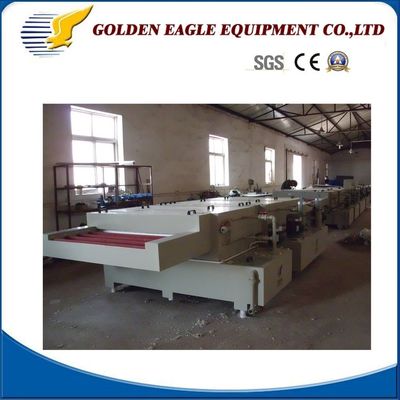

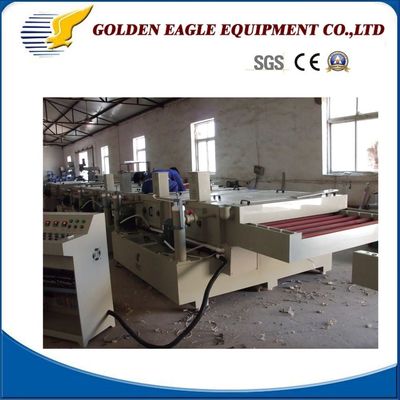

| SK48 Automatic Etching/ Stripping Machine | |
| Power | 38.5KW/380V/50HZ |
| Working width | 1500mm |
| Etching system | Spraying & Swing system |
| Heat System | 3KW Titanium * 5pcs |
| Etching pump | 4.5KW*3pcs |
| Stripping Pump | 5.5KW*2 pcs |
| Working Speed | 0.5~6.5 M/Min (adjust) |
| Machine Size | 18550*2250*1850mm |
| Weight | About 3500 kgs |
Process: load (3meter) + etching (3meter)+ micro etching (1meter)+washing (1meter)+ checking (3meter)+stripping (2meter)+ washing (1meter) + drying part (1.5meter)+ unload (3meter)
