Product Details:
|
| Model NO.: | GE-D650 | Product Type: | Chemicals |
|---|---|---|---|
| Proximity Exposure: | Vacuum Contact | Feature Size: | 0.35 Um |
| Classification: | Pre-Coating Laminating Machine | Driven Type: | Electric |
| Membrane Material: | Pet Film | Plastic Film Mulching Modes: | Hot Laminating |
| Performance: | Anti Wrinkle | After-Sales Service: | 1year. After 1year, Once Some Components Are Broke |
| Application: | Dry Film Photoresist Laminator | Power: | AC220V/ 50/60Hz/15A |
| Foundation Plate Size: | Long:250~610mm, Thick:0.05~3.2mm, Width:250~ 650mm | Dry Film Size: | Width:250~610mm |
| Out Size: | L830×w1125×h1520mm | Weight: | 220kg |
| Electricity Heater: | 2kw/AC220V 2PCS | Heat-Press Roller: | Diameter 78mm * 2PCS |
| Air Pressure System: | 3-5kg/Square Centimeter | Exhaust System: | 12square Meter/Min, Diameter Inch*1 |
| Transport Package: | Wooden Package | Specification: | CE |
| Trademark: | Golden Eagle | Origin: | Beijing, China (Mainland) |
| HS Code: | 84862090 | Supply Ability: | 35sets/Month |
| After-sales Service: | Once Some Components Are Broke | Warranty: | 1year, 1year. After 1year, Once Some Components Are Broke |
| Usage: | Microelectronics | Type: | Image Setter |
| Page: | Double Faced | Automatic Grade: | Manual, Semi-Automatic |
| Samples: | US$ 150/Piece 1 Piece(Min.Order) | Request Sample |

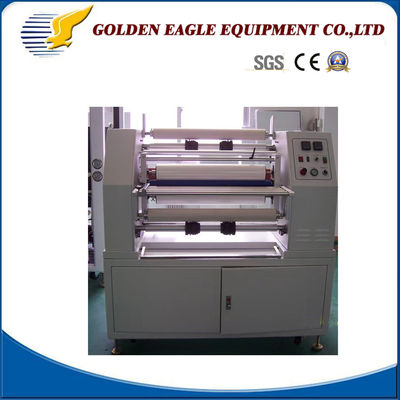

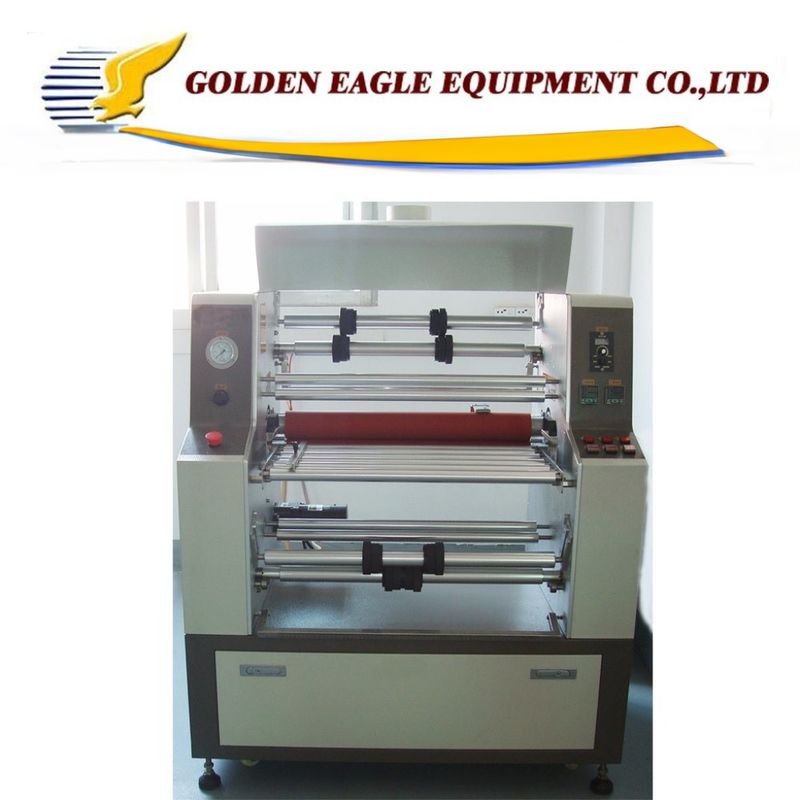

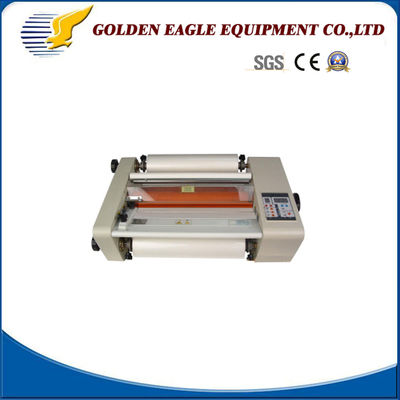

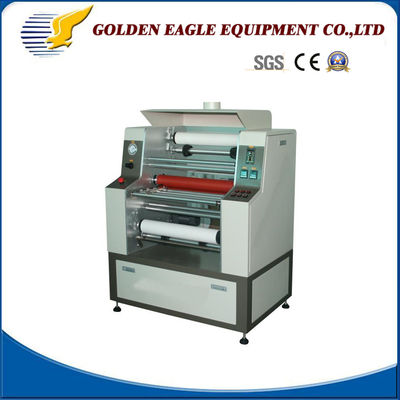

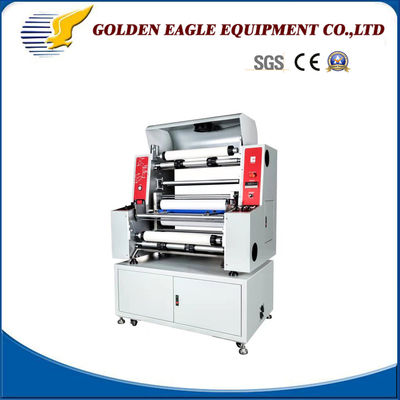

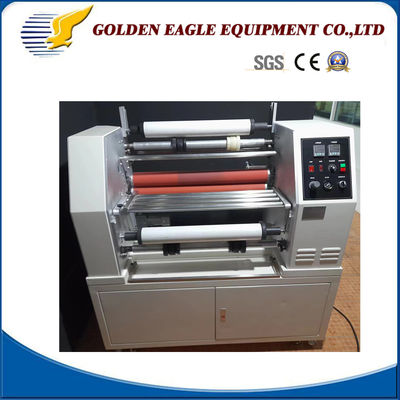

DF610 dry film resist laminator-PCB equipment
Features:
1. This machine is used for laminating photoresist dry film in PCB industry&metal parts processing industry. Coating the dry photoresist film on the metal plate surface.| Machine Name:Dry Film Laminator | |
| Power | AC220V/ 50/60HZ/15A |
| Foundation plate size | Long:250~610mm Thick:0.05~3.2mm Width:250~ 650mm |
| Dry Film Size | Width:250~610mm |
| Outsize/ Weight | L830×W1125×H1520mm / 220kg |
| Electricity Heater | 2KW/AC220V 2PCS |
| Heat-press roller | Diameter:¢78mm * 2PCS |
| Press film temperature | 50ºC-150ºC±2ºCAdjustable |
| Air Pressure system | 3-5kg/ cm3 |
| Exhaust system | 12 m2/min, ¢4″×1 |
