Product Details:
|
| Model NO.: | GE-D650 | Electricity Heater: | 2kw/AC220V; 2PCS |
|---|---|---|---|
| Heat-Press Roller Diameter: | 78mm * 2PCS | Press Film Temperature: | 50-150 Degrees ( ± 2 Adjustable) |
| Air Pressure System: | 3-5kg/ C | Outsize: | Long: 830mm× Width 1125mm× High 1520mm |
| Machine Weight: | 220kgs | Transport Package: | Standard Export Wooden Case |
| Specification: | CE | Trademark: | GOLDEN EAGLE |
| Origin: | China | HS Code: | 84862090 |
| Supply Ability: | 30sets/Month | After-sales Service: | 1year. After 1year,Once Some Components Are Broke |
| Warranty: | 1year. After 1year,Once Some Components Are Broke | Model: | Ge-D650 |
| Power: | AC220V/ 50/60Hz/15A | Foundation Plate Size: | Long: 250~610mm Width: 250~ 650mm |
| Dry Film Size Width: | 250~610mm,15~75um |
Features:

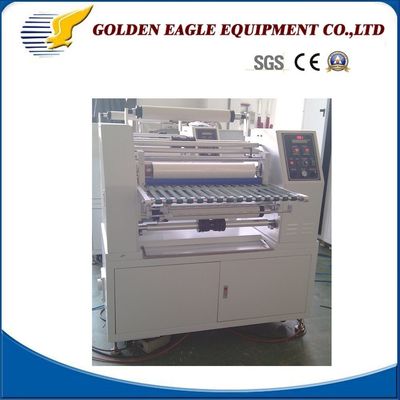

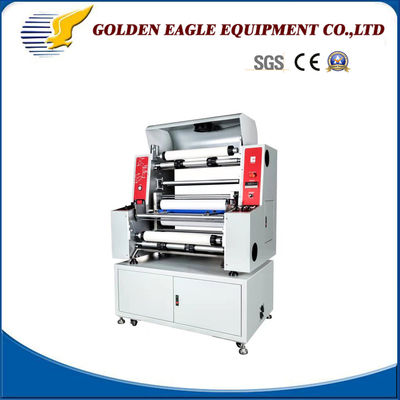

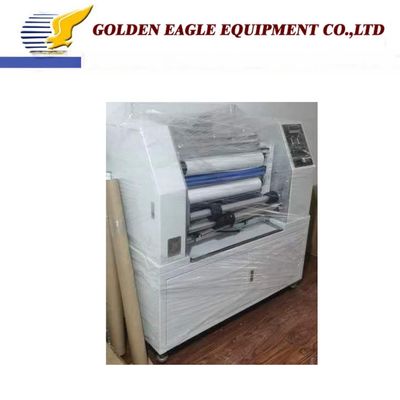

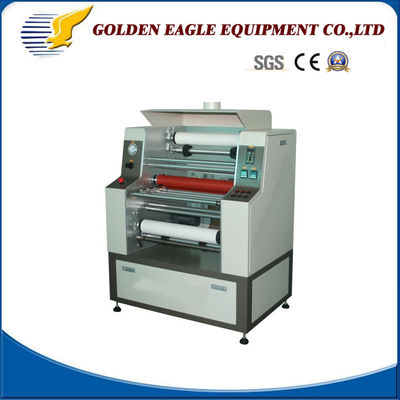

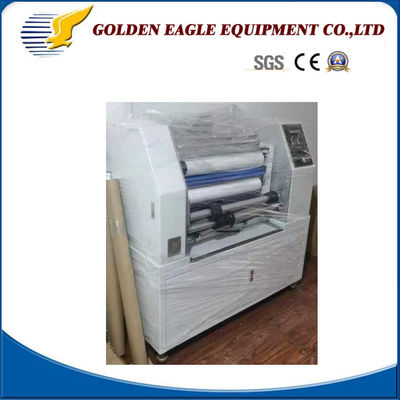

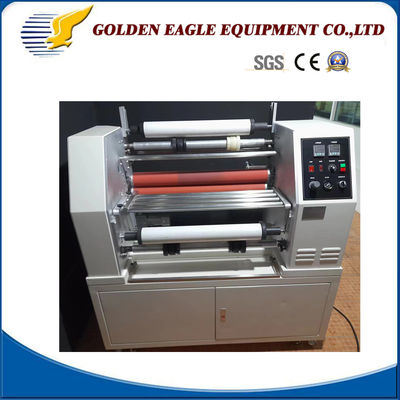

1. This machine is used for laminating photoresist dry film in PCB industry&metal parts processing industry. Coating the dry photoresist film on the metal plate surface.| Machine Name:Dry Film Laminator | |
| Power | AC220V/ 50/60HZ/15A |
| Foundation plate size | Long:250~610mm Thick:0.05~3.2mm Width:250~ 650mm |
| Dry Film Size | Width:250~610mm |
| Outsize/ Weight | L830×W1125×H1520mm / 220kg |
| Electricity Heater | 2KW/AC220V 2PCS |
| Heat-press roller | Diameter:¢78mm * 2PCS |
| Press film temperature | 50ºC-150ºC±2ºCAdjustable |
| Air Pressure system | 3-5kg/ cm3 |
| Exhaust system | 12 m2/min, ¢4″×1 |
Beijing Golden Eagle Electronic Equipments Co.,Ltd located Beijing, the capital of China. We manufacturer of printed circuit board (PCB) manufacturing equipment & machinery including chemical etchers, strippers, cleaners & dryers. PCB Etching Equipment and Wet processing equipment and Chemical Milling machine and Metal etchers.
We can supply whole processing equipments and support with whole processes technique training. maily used In Metal etching,PCB etching ,FPC etching,Precision parts etching,Cutting Dies & Hot stamping dies etching,nameplate & medal etching, Press plate etching,Decoration plate etching and so on. material can be stainless steel,copper,brass,aluminum,zinc,magnesium and so on.
In the past 20 years, we sold variety of etching machines to Australia,ARGENTINA,Armenian,Belarus,Bulgaria,Belgium, Canada,Colombia,Czech Republic,Egypt,FRANCE,INDIA,IRAN,Kuwait,Lebanon,MEXICO,Malaysia,PORTUGAL,QATAR,Romania,Saudi Arabia,Singapore,Sweden,SPAIN, Sri Lanka,THAILAND,TURKEY,U.A.E.,USA,United Kingdom,and many other countrys.
Our mission is to deliver high-quality, reliable manufacturing solutions that are designed to meet each customer's unique needs.
Contact Person: Mrs. liu
Tel: 15010608128
