Product Details:
|
| Model NO.: | SK9 | Etching Type: | Double Spray |
|---|---|---|---|
| Precision: | Precision | Condition: | New |
| Working Width: | 650mm (Can Be Order) | Tolerance: | 0.02mm |
| Plate Thickness: | 0.05mm ~3.2mm | Application: | Single Board, Double Board, Multi-Layer Board |
| Transport Package: | Standard Export Wooden Case | Specification: | CE |
| Trademark: | Golden Eagle | Origin: | Beijing, China (Mainland) |
| HS Code: | 84862090 | Supply Ability: | 20sets/Month |
| After-sales Service: | After 1year,Once Some Components Are Broke | Warranty: | After 1year,Once Some Components Are Broke |
| Type: | Photochemical Etching Machine | Object: | Metal |
| Usage: | Corrosion & Hollowed-out | Certification: | CE |
| Samples: | US$ 500/Piece 1 Piece(Min.Order) | Request Sample |

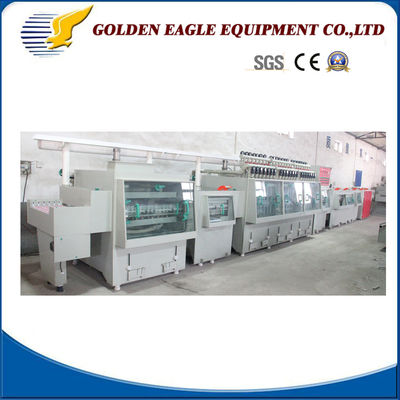

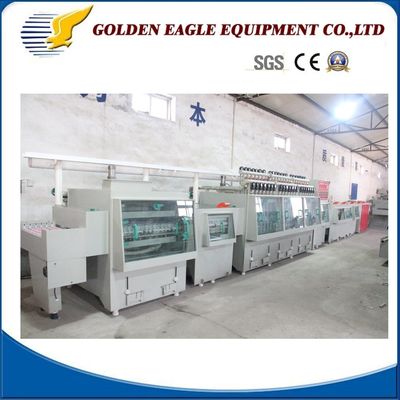

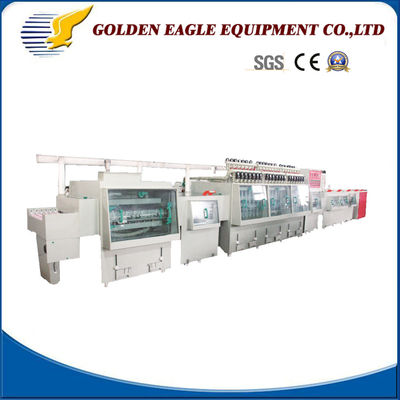

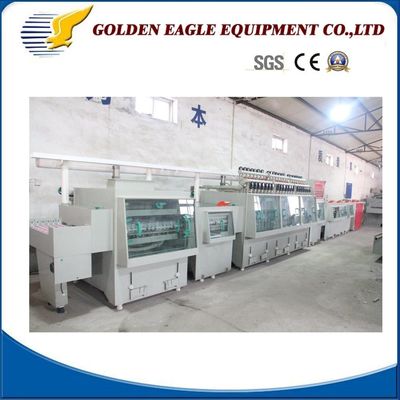

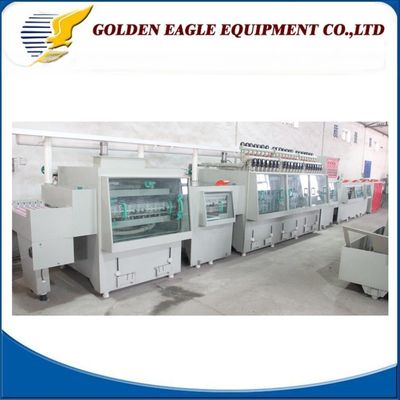

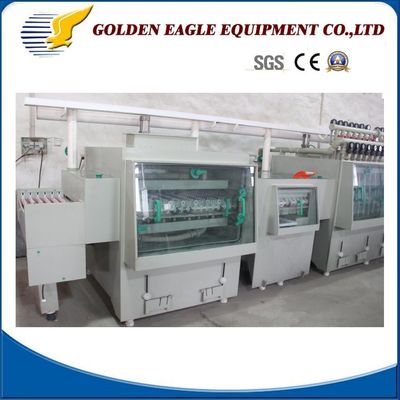

| Presicion Etching /Stripping Production Line | |||
| Specification introduction | |||
| Economy configuration | 15mm PP plate & Stainless Steel Shaft | ||
| Field dimension | 12500mm(L)*1650mm(W)*1700mm(H) | ||
| Conveyor | Transact metal panel thickness | 0.5~5MM | |
| Conveyor height | 900MM (+/-25mm) | ||
| Conveyor width | 650MM | ||
| Power | Voltage/phase/frequency | 380V,3Phase,50Hz, | |
| Control box | Control Button Panel | ||
| Power consumption | ≈46.5KW(include heater) | ||
| Water consumption | city water consumption | 0.5Ton/Hour | |
| DI water consumption | -------- | ||
Pipe diameter | City water flow pipe diameter | DN32 | |
| Waste water drainpipe diameter | DN40 | ||
| Exhaust emission pipe diameter | 160mm | ||
| Transportation | Operation speed | 0.5-5 M/MIN (adjust) | |
| Transmission wheel | Rubber Wheel | ||
| panel space | 2" | ||
| Conveyor work flow | From L to R | ||
Process:
Load (450mm) ---Etching 1, 2 (2000mm)--- Pressure rinse (1000mm) ---Checking(300mm)--- Stripping(2000mm) ----Pressure Rinse(1500mm)---- Cold dry(500mm)----Hot dry (1000mm)-----Unload (450mm)
1.Q:Are you trading company or a factory ?
A: We are manufactory and We have import and export License .
2.Q:Where is your factory ?How Can I visit there?
A: Our factory is located in Beijing, the capital of China,Warmly welcome to visit us.
3.Q:How can I get some samples ?
A: we are honores to offer you samples,please contact us anytime !
4.Q: How does your factory do regarding quality control ?
A: Quality is priority .Golden Eagle people always attach great importance to quality controlling from A to Z.
5.Q:Why us ?
A: 1. 20 years machine manufacture experiences !
2. More than 10 years good credit supplier on Made-in-China
3. satisfaction or we'll refund or rerun-your choice
4. Etching technology can be provided for free to our customer by our well-trained and professional engineers and staffs.
After sales service:
1.Customized design is available.
2.Master operator training program for free.
3.Reasonable and negotiable price,short lead time.
Beijing Golden Eagle Electronic Equipments Co.,Ltd located Beijing, the capital of China. We manufacturer of printed circuit board (PCB) manufacturing equipment & machinery including chemical etchers, strippers, cleaners & dryers. PCB Etching Equipment and Wet processing equipment and Chemical Milling machine and Metal etchers.
We can supply whole processing equipments and support with whole processes technique training. maily used In Metal etching,PCB etching ,FPC etching,Precision parts etching,Cutting Dies & Hot stamping dies etching,nameplate & medal etching, Press plate etching,Decoration plate etching and so on. material can be stainless steel,copper,brass,aluminum,zinc,magnesium and so on.
In the past 20 years, we sold variety of etching machines to Australia,ARGENTINA,Armenian,Belarus,Bulgaria,Belgium, Canada,Colombia,Czech Republic,Egypt,FRANCE,INDIA,IRAN,Kuwait,Lebanon,MEXICO,Malaysia,PORTUGAL,QATAR,Romania,Saudi Arabia,Singapore,Sweden,SPAIN, Sri Lanka,THAILAND,TURKEY,U.A.E.,USA,United Kingdom,and many other countrys.
Our mission is to deliver high-quality, reliable manufacturing solutions that are designed to meet each customer's unique needs.
