Product Details:
|
| Model NO.: | GE-SK9 | Etching Type: | Double Spray |
|---|---|---|---|
| Precision: | Precision | Condition: | New |
| Working Width: | 650mm (Can Be Order) | Tolerance: | 0.02mm |
| Plate Thickness: | 0.05mm ~3.2mm | Application: | Single Board, Double Board, Multi-Layer Board |
| Model: | Ge-Sk9 | Power: | 380V/50Hz/60Hz |
| Working Height: | 850mm (+/50mm Adjust) | Min / Max Board Size: | 120*80mm / 500*500mm |
| Etching System: | Double Spray With Oscillate System | Working Temperature: | 35~55 |
| Transport Package: | Standard Export Wooden Case | Specification: | CE |
| Trademark: | Golden Eagle | Origin: | Beijing, China (Mainland) |
| HS Code: | 84862090 | Supply Ability: | 20sets/Month |
| After-sales Service: | After 1year,Once Some Components Are Broke | Warranty: | After 1year,Once Some Components Are Broke |
| Type: | Photochemical Etching Machine | Object: | Metal |
| Usage: | Marking & Lettering, Corrosion & Hollowed-out | Certification: | CE |

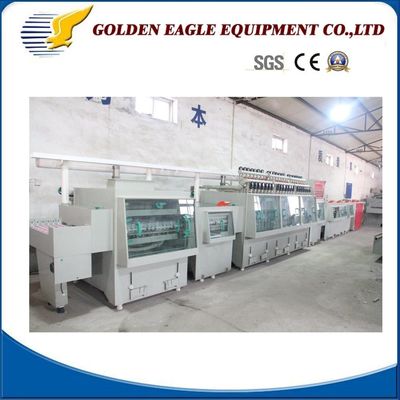

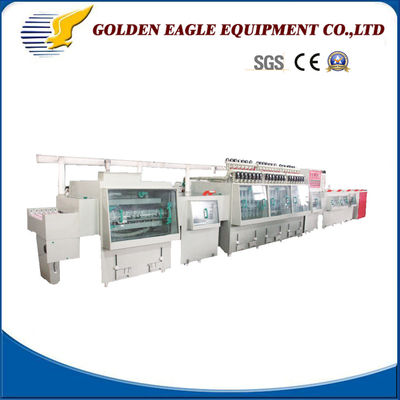

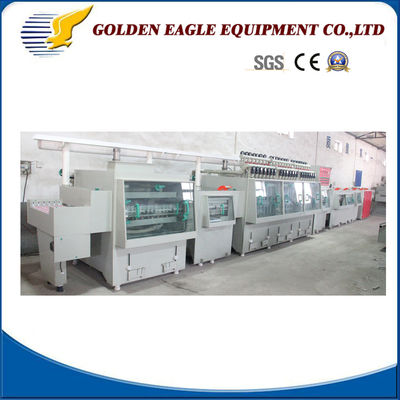

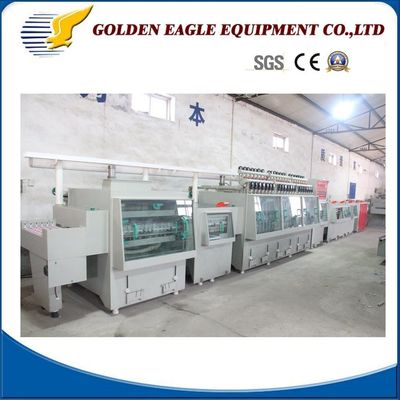

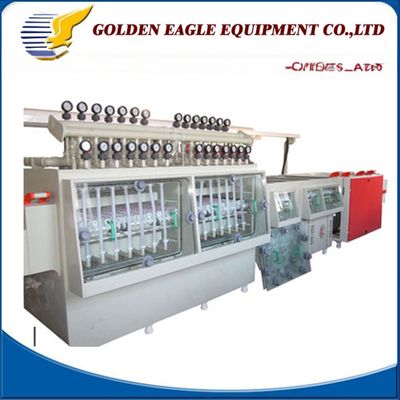

| Presicion Etching /Stripping Production Line | |||
| Specification introduction | |||
| Economy configuration | 15mm PP plate & Stainless Steel Shaft | ||
| Field dimension | 12500mm(L)*1650mm(W)*1700mm(H) | ||
| Conveyor | Transact metal panel thickness | 0.5~5MM | |
| Conveyor height | 900MM (+/-25mm) | ||
| Conveyor width | 650MM | ||
| Power | Voltage/phase/frequency | 380V,3Phase,50Hz, | |
| Control box | Control Button Panel | ||
| Power consumption | ≈46.5KW(include heater) | ||
| Water consumption | city water consumption | 0.5Ton/Hour | |
| DI water consumption | -------- | ||
Pipe diameter | City water flow pipe diameter | DN32 | |
| Waste water drainpipe diameter | DN40 | ||
| Exhaust emission pipe diameter | 160mm | ||
| Transportation | Operation speed | 0.5-5 M/MIN (adjust) | |
| Transmission wheel | Rubber Wheel | ||
| panel space | 2" | ||
| Conveyor work flow | From L to R | ||
Process:
Load (450mm) ---Etching 1, 2 (2000mm)--- Pressure rinse (1000mm) ---Checking(300mm)--- Stripping(2000mm) ----Pressure Rinse(1500mm)---- Cold dry(500mm)----Hot dry (1000mm)-----Unload (450mm)
