Product Details:
|
| Model NO.: | SK6 | Etching Type: | Double Spray |
|---|---|---|---|
| Precision: | Precision | Condition: | New |
| Power: | 31.5kw/380V/50Hz | Working Width: | 650mm |
| Working Temperature: | 37~45centigrade | Heat System: | Titanium, 5.5kw*3PCS |
| Machine Size: | 9500*1700*1650mm | Transport Package: | Wooden Package |
| Specification: | CE | Trademark: | Golden Eagle |
| Origin: | Beijing, China (Mainland) | HS Code: | 848620900 |
| Supply Ability: | 35sets/Month | After-sales Service: | After 1year,Once Some Components Are Broke |
| Warranty: | After 1year,Once Some Components Are Broke | Type: | Photochemical Etching Machine |
| Object: | Metal | Usage: | Corrosion & Hollowed-out |
| Certification: | CE |

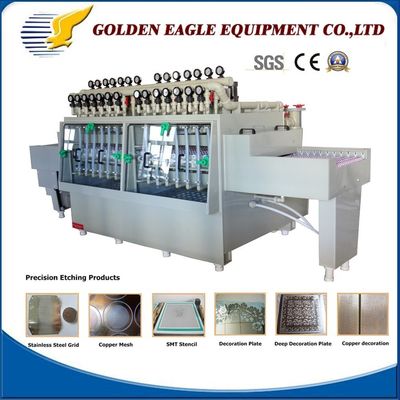

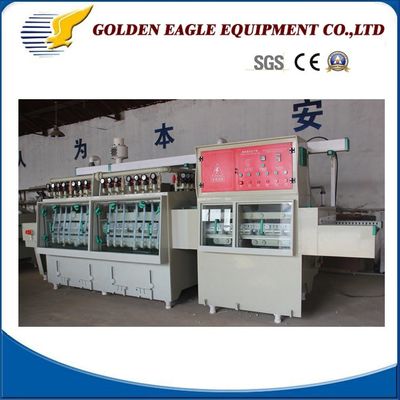

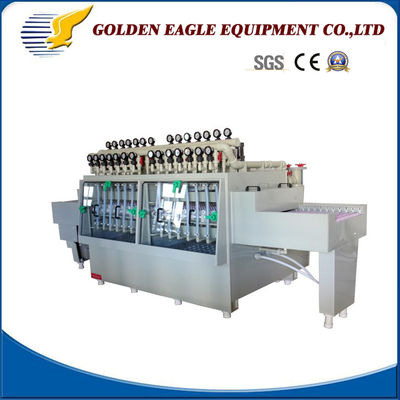

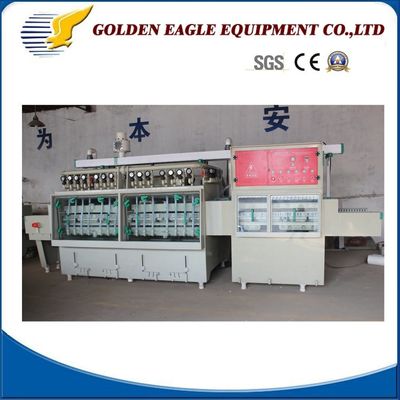

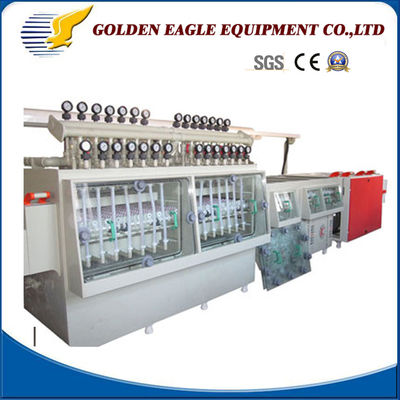

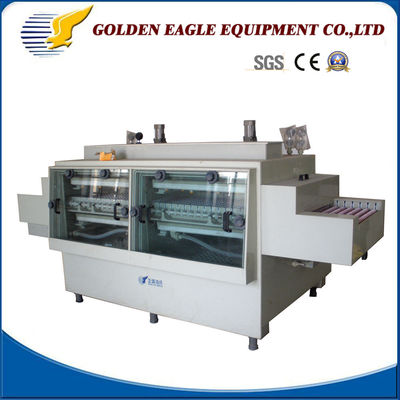

Ferric chloride etching machine for photo etching (photoengraving) works which etchant is ferric chloride. Photoresist stripping machine for photosensitive resist(maskes) stripping uses. Stripping size and functions can be ordered.
Specifications:
| Model: | GE-SK6 |
| Power | 31.5KW/380V/50Hz |
| Working width | 650mm |
| Etching type | Double spray & Oscillate |
| Working Temperature | 37~45centigrade |
| Heat System | Titanium, 5.5KW*3PCS |
| Machine Size | 9500*1700*1650MM |
| Weight | About 4500kgs |
