Product Details:
|
Model NO.: | GE-SK2 | Etching Type: | Double Spray |
---|---|---|---|
Precision: | Precision | Condition: | New |
Model: | Ge-Sk2 | Power: | 11.5kw/380V/50Hz |
Working Width: | 600mm | Working Height: | 850mm (+/50mm Adjust) |
Etching System: | Oscillate System | Workpiece Thickness: | 0.2~3.2mm Thickness |
Working Temperature: | 35~55 | Etching Pump: | 4kw*2sets |
Heater: | 3kw*1PC | Package: | Wooden Packaging |
Transport Package: | Standard Export Wooden Case | Specification: | CE |
Trademark: | GOLDEN EAGLE | Origin: | China |
HS Code: | 84862090 | Supply Ability: | 15sets/ Month |
After-sales Service: | After 1year,Once Some Components Are Broke | Warranty: | After 1year,Once Some Components Are Broke |
Type: | Electrical Etching Machine | Object: | Metal |
Usage: | Marking & Lettering, Corrosion & Hollowed-out | Certification: | CE |
Samples: | US$ 500/Piece 1 Piece(Min.Order) | Request Sample |

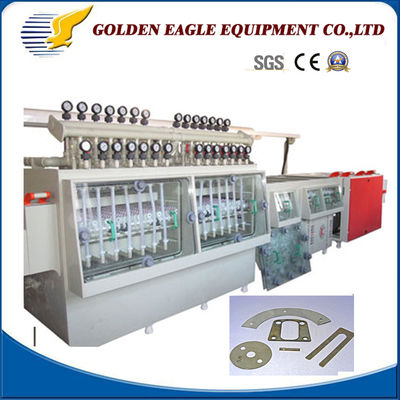

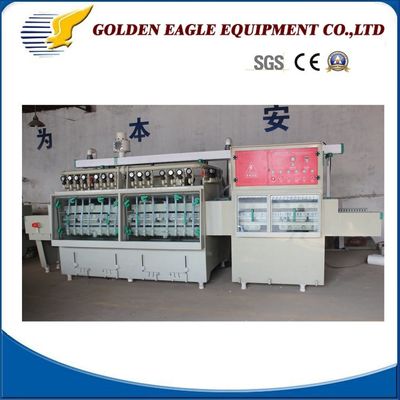

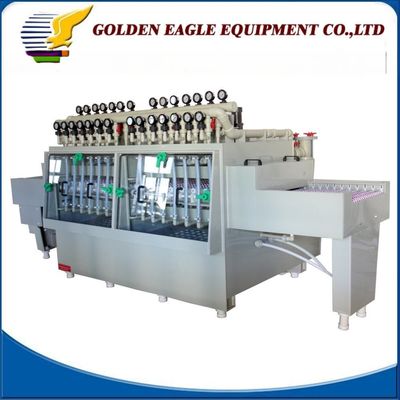

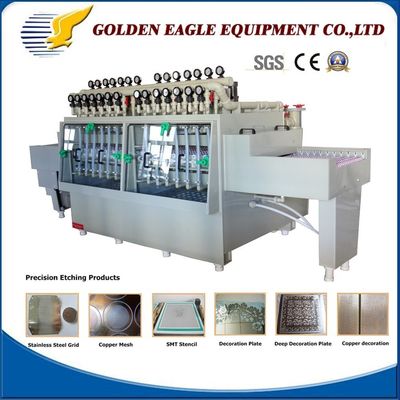

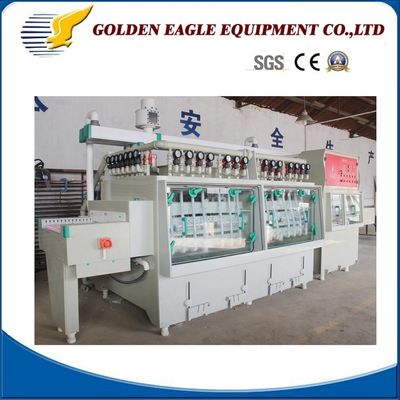

Auto Double Side Etching Machine | |
Power | 16KW/380V/50HZ |
Working width | 650mm |
Etching area | Length:2000mm |
Pump:4KW/set,2sets | |
Double Spraying & Oscillate Pressure control for every spray pipe | |
Heater: Titanium pipe,3KW/1groups | |
Cooling: Titanium pipe,1set | |
Working Temp:37~55ºC | |
Rinse area | Length: 500mm, 1parts |
Pump:2.2KW/set,1sets | |
Double spraying | |
Machine Size | 4500*1650*1700mm |
Weight | About 1000kgs |
Process:
Load (500mm) → Etching1,2 (2000mm)→Pressure rinse1(500mm)→Unload (500mm)
Feature:
Service:
