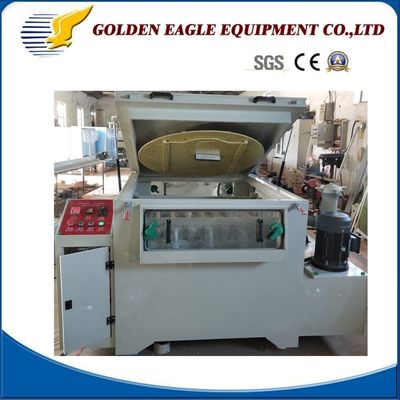

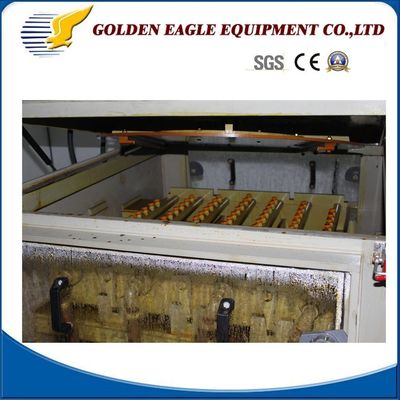

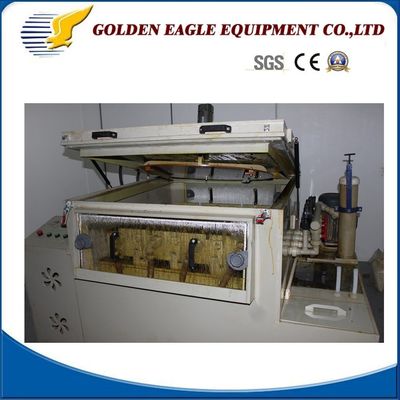

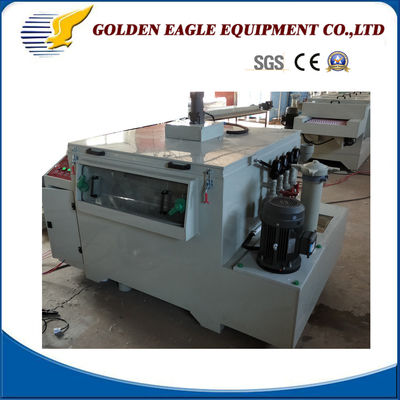

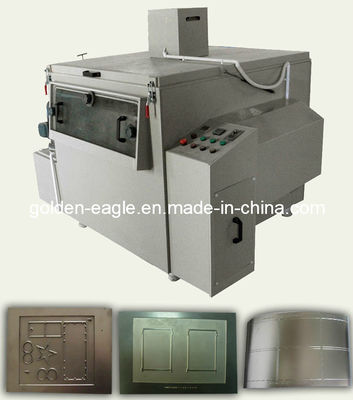

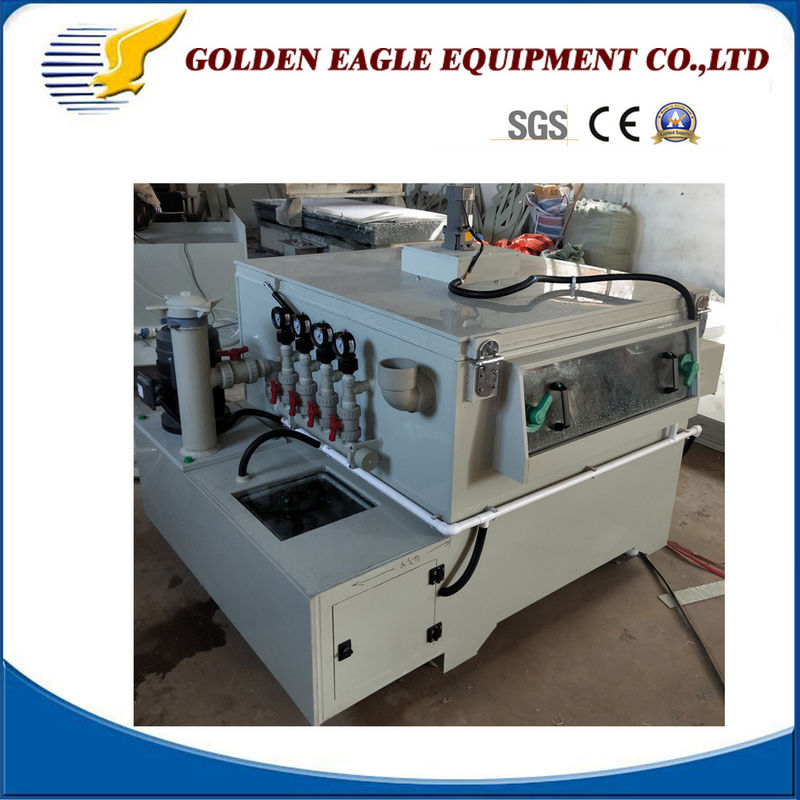

Photochemical Etching Machine for Metal Object Db5060 Steel Engraved Flexible Dies

Large Image : Photochemical Etching Machine for Metal Object Db5060 Steel Engraved Flexible Dies

Product Details:

Contact Now

Photochemical Etching Machine for Metal Object Db5060 Steel Engraved Flexible Dies

Description

Model NO.:	DB5060	Etching Type:	One-Side Spray
Precision:	Precision	Condition:	New
Power:	7.5kw/380V	Working Size:	500*600mm
Heat System:	Titanium,3kw	Cool System:	Titanium Pipe
Motor Power:	4kw/380V	Machine Size:	195013501550mm
Weight:	About 550kgs	Model:	DB5060
Lead Time:	15days	Transport Package:	Wooden Case
Specification:	CE	Trademark:	Golden Eagle
Origin:	Beijing, China	HS Code:	84862090
Supply Ability:	25 Sets/Month	After-sales Service:	After 1year,Once Some Components Are Broke
Warranty:	After 1year,Once Some Components Are Broke	Type:	Photochemical Etching Machine
Object:	Metal	Usage:	Corrosion & Hollowed-out
Certification:	CE

Steel Engraved Flexible Dies Etching Machine
DB5060 Photo Etching Machine for flexible dies

DB5060 Steel Flexible Dies Etching Machine

Power:	7.5KW/380V
Working Size:	500*600mm
Etching type:	Vertical spraying
Working Temp:	40~55 degrees
Heat System:	Titanium, 3KW
Cool System:	Titanium Pipe
Motor power:	4KW/380V
Machine Size:	195013501550mm
Weight About;	550kgs

Control system: Temperature, Speed, Pressure, Network Filter

Making Process: Dry film photoresist & ink --- expose --- developer --- etching -- stripper --- cleaning --- drying --- CNC engraving ---- nickel & chrome plating --- finished

Introduction:
1. Flexible Dies Etching machine is a photoengraving machines for steel or high-carbon steel plate mold pretreating etching to advance following engraving processing.
2. After etching, the cutting knife-edge and knife depth is etched out.
3. Then the following CNC engraving Knife sharpening works is easy and fast.
4. It can save lots of unnecessary cost compare to use CNC engraving to working completely.
