Product Details:
|
| Supply Ability: | 300 Sets / Year | Model NO.: | GE-1400GJ |
|---|---|---|---|
| Working Height: | 750mm | Machine Weight: | 1.5 Tons |
| Power Requirements: | Three-Phase/380V/4kw | Machine Size: | L2000*W1310*H1300 |
| Transport Package: | Wooden Case | Specification: | L2000*W1310*H1300 |
| Origin: | China | HS Code: | 84862090 |
| After-sales Service: | Technical Support | Warranty: | 1 Year |
| Cutting Material: | Fr4/ Aluminium PCB | Cutting Type: | Roll |
| Max Thickness: | 2mm | Cutting Speed: | 0-15 Meter/Minutes |

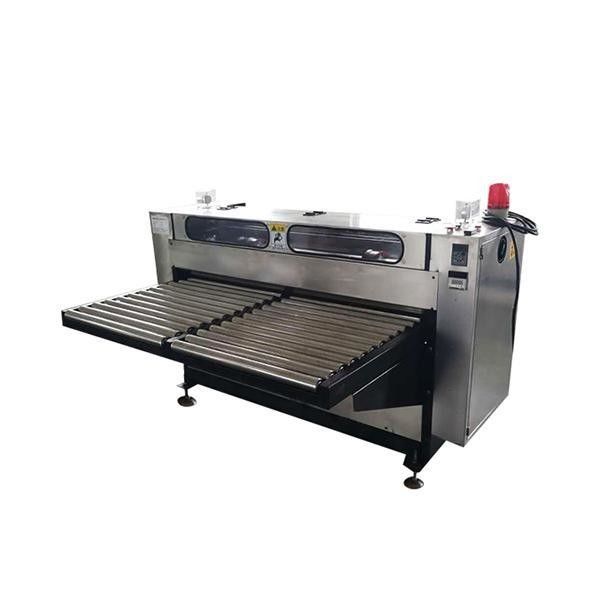

| PCB board Cutting Machine specification: | ||
| Model | GE-1400GJ | |
| Cut board size | Width:120mm-1.4m Length: 200mm-1.6m | |
| Cutting speed | 0-15 meter/minutes | |
| Working substrate thickness | 0.12-3.0 (mm) | |
| Working height | 750MM | |

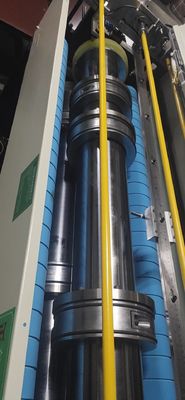

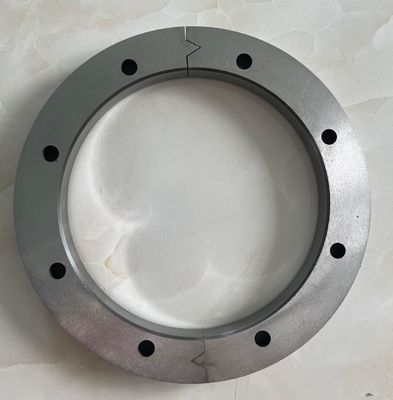

| Tool specifications | D200*d150*t16 Tool thickness: 16mm Tool speed: 45 rpm | |
| Machine size | L2000*W1310*H1300 | |
| Machine weight | 1.5 tons | |
| Power requirements | Three-phase/380V/4kw | |
| Machine usage :Cutting Aluminum PCB and FR4, Cardboard, fiberglass, PCB raw material for matching size. | ||
| Feature: 1. Multi-knife cutting up and down, precise size, convenient knife adjustment. 2. Frequency driver control transmission speed. | ||
| Consumables: It can be used continuously under normal conditions. It needs to be sharpened once every three months, and the cost of sharpening knife is also required USD 35/ piece, if need to add or replace new blade, new knife USD 140 / piece | ||
Beijing Golden Eagle Electronic Equipments Co.,Ltd located Beijing, the capital of China. We manufacturer of printed circuit board (PCB) manufacturing equipment & machinery including chemical etchers, strippers, cleaners & dryers. PCB Etching Equipment and Wet processing equipment and Chemical Milling machine and Metal etchers.
We can supply whole processing equipments and support with whole processes technique training. maily used In Metal etching,PCB etching ,FPC etching,Precision parts etching,Cutting Dies & Hot stamping dies etching,nameplate & medal etching, Press plate etching,Decoration plate etching and so on. material can be stainless steel,copper,brass,aluminum,zinc,magnesium and so on.
In the past 20 years, we sold variety of etching machines to Australia,ARGENTINA,Armenian,Belarus,Bulgaria,Belgium, Canada,Colombia,Czech Republic,Egypt,FRANCE,INDIA,IRAN,Kuwait,Lebanon,MEXICO,Malaysia,PORTUGAL,QATAR,Romania,Saudi Arabia,Singapore,Sweden,SPAIN, Sri Lanka,THAILAND,TURKEY,U.A.E.,USA,United Kingdom,and many other countrys.
Our mission is to deliver high-quality, reliable manufacturing solutions that are designed to meet each customer's unique needs.
Contact Person: Mrs. liu
Tel: 15010608128
